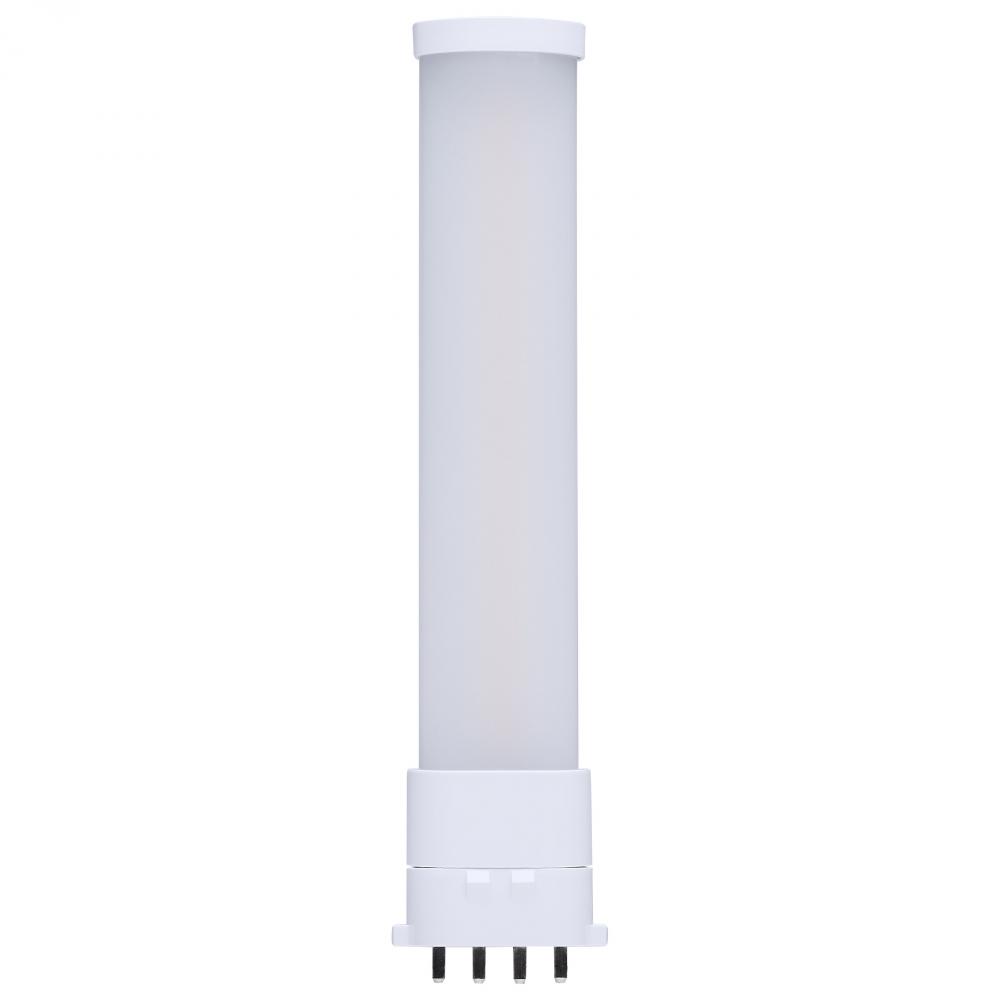

5.5 Watt; 2GX7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt

Satco Products Inc.
5.5 Watt; 2GX7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt

Part Number: S11556

UPC: 00045923115561

List Price:

/ / 1

($9.99 / 1)

WAS

Call for Price

3848 Available from Manufacturer

Quantity:

Finish Family :

Frost

Return

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

5.5 Watt; 2GX7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt

Specifications

Details

Product Width:

1.26"

Category:

Light Bulbs

Subcategory:

LED Bulbs

Category:

LED

Sub-Category:

LED CFL Replacements Pin Based

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

2700K/3000K/3500K/4000K

Bulb Shape:

Diameter:

1.26

EA Length:

1.54

Harmonized Codes:

8539.52.0091

Length:

6.51

Lumens:

600L/620L/630L/650L

Shap Carton Width:

0.91

Ship Carton Height:

6.61

Ship Weight:

0.08

Warranty:

5 Year Limited - 10 hr per day

Weight:

0.07000000000000001

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

120

Bulb ANSI Base:

2GX7

Bulb Base:

2GX7 (4-Pin)

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.0054

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm to Cool White

Country Of Origin:

China

CRI:

Efficacy:

109.09/112.73/114.55/118.18 LPW

Enclosed Fixture Use:

FCC Compliant:

Yes

Feature 1:

4 CCT Selectable

Feature 2:

Type B Ballast Bypass

Feature 3:

120 Degree Beam Spread

Feature 4:

2GX7 Lamp Base

Feature 5:

Damp location rated

Feature 6:

50,000 Hour Functional Life

Feature 7:

5 Year Warranty

Flourescent Equivalent:

13W

Indoor Outdoor:

Indoor

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

The SATCO|NUVO S11556 4.5W Type B LED lamp provides an efficient replacement for 5W, 7W, and 9W CFL lamps with a G23 base. With its ballast bypass design, this lamp connects directly to the electrical system, eliminating the need for a traditional ballast.

Material:

Polycarbonate (PC)

NSF Approved:

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

Upgrade your lighting with SATCO|NUVO’s energy-efficient Type B ballast bypass LED replacement lamps. These innovative lamps are available in multiple base options to suit your needs. The 3.5W model for 5/7/9W CFL lamps with a 2G7 base and the 5.5W model

Short Description:

5.5W/LED/CFL/CCT/2GX7/BP

Style:

Transitional

Surge Protection:

Built-in-surge protection - 0.5KV

Technology:

LED

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

20%

Wattage Selectable:

Watts:

5.5W

Manufactured By:

Satco Products Inc.
